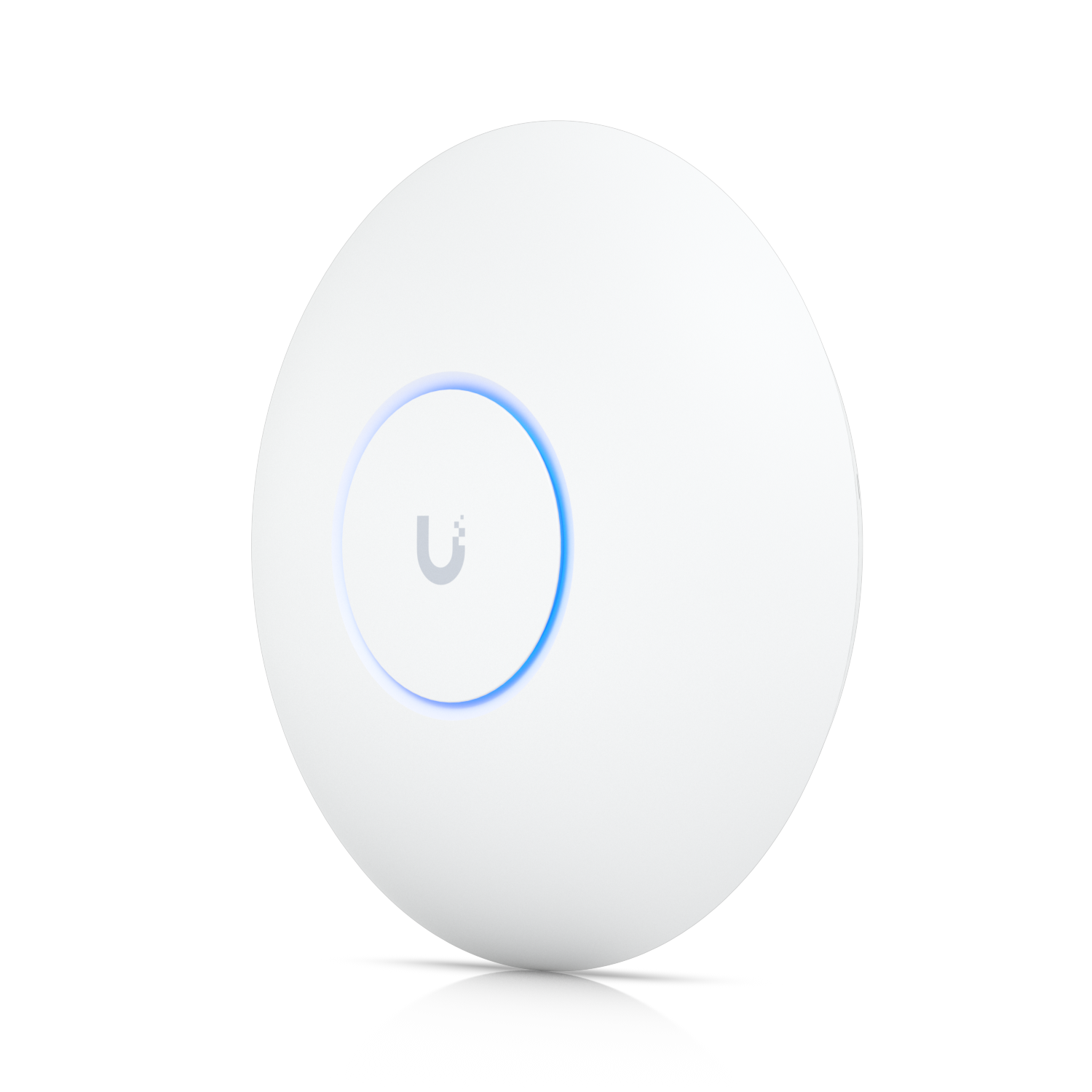

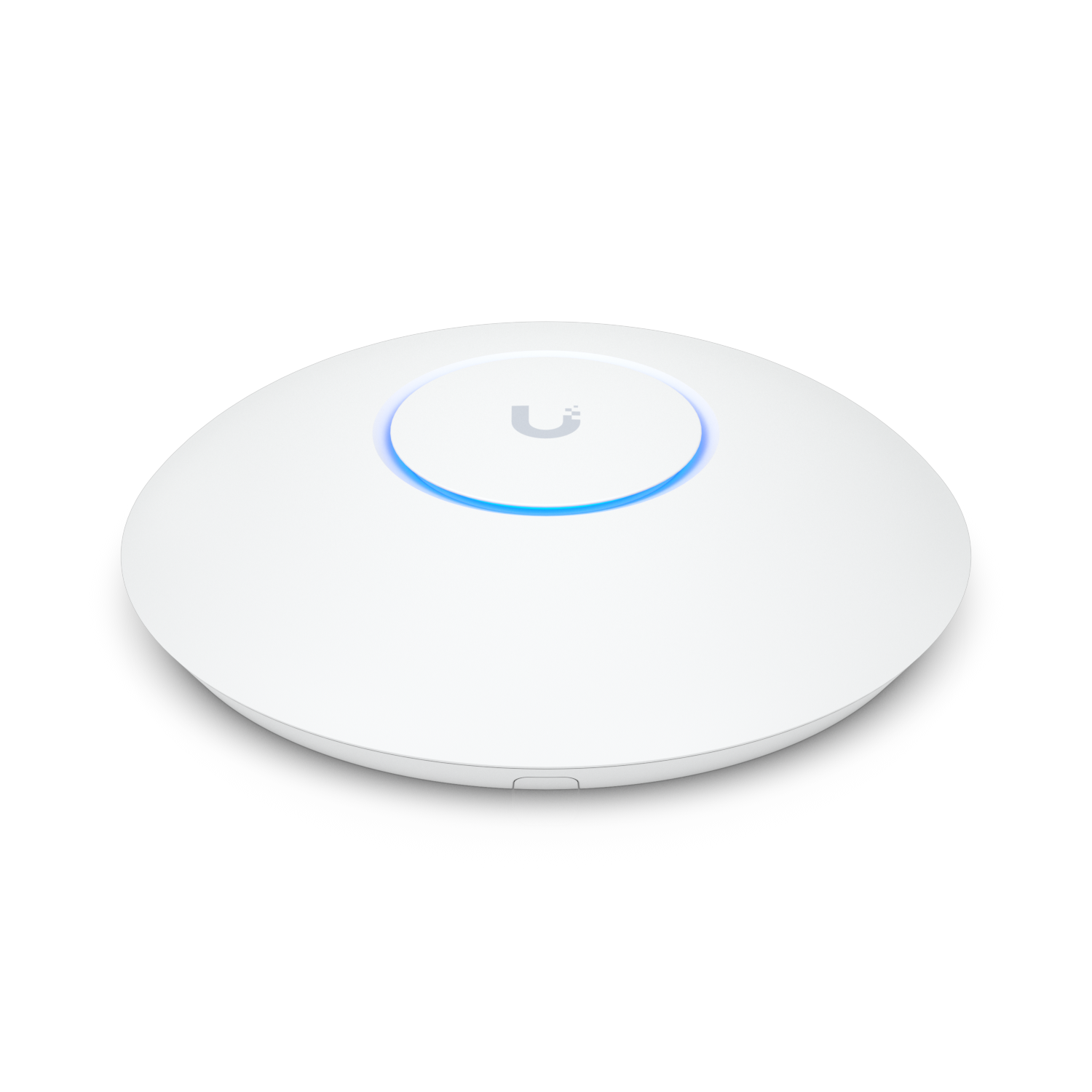

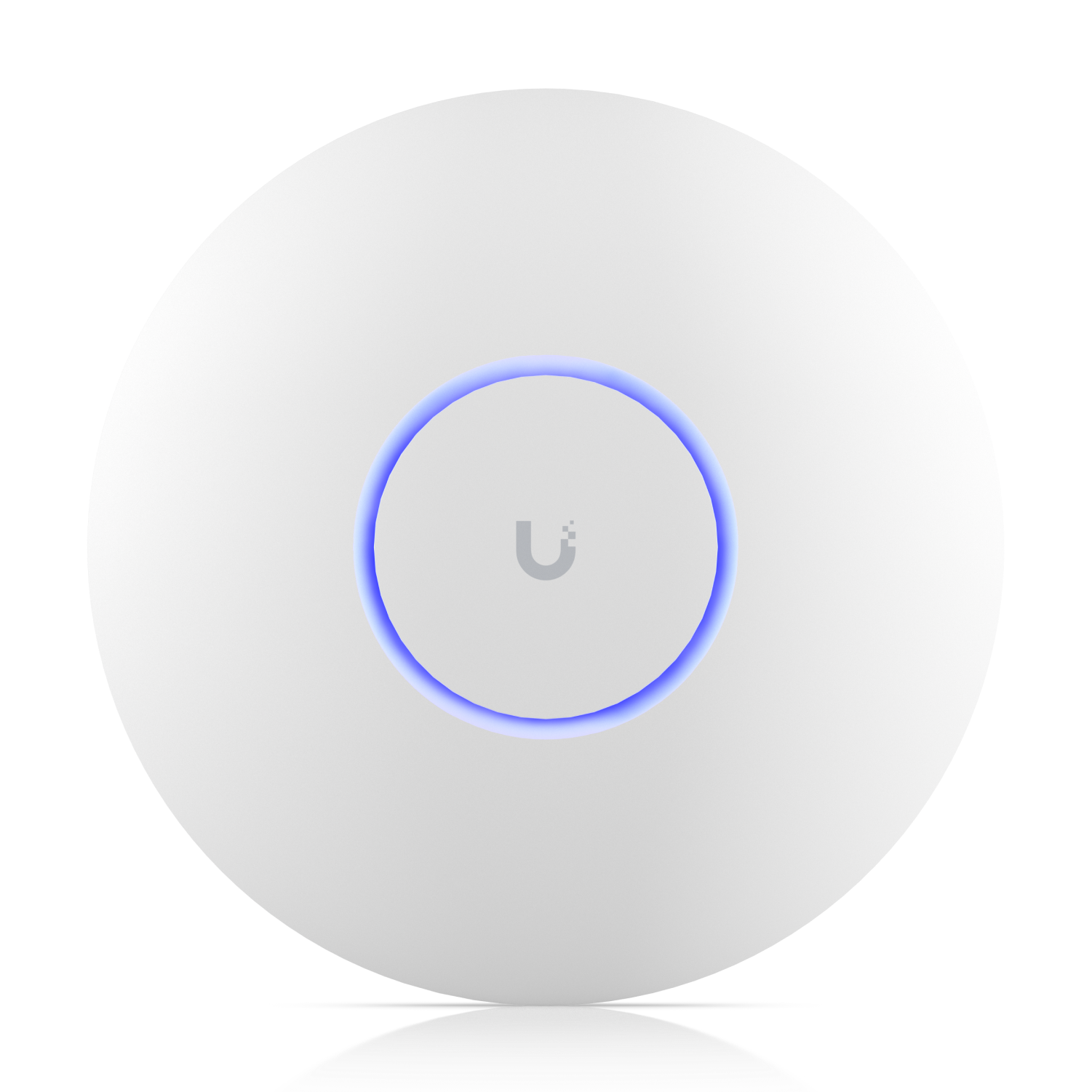

The Ubiquiti UniFi U7 Pro represents the pinnacle of indoor wireless technology, engineered as a flagship WiFi 7 access point for demanding enterprise environments. This compact, ceiling/wall-mountable device leverages the latest 802.11be standard with 6 spatial streams and 2×2 DL/UL MU-MIMO across all three radio bands (2.4 GHz, 5 GHz, and 6 GHz) to achieve groundbreaking performance. It delivers maximum data rates of 5.8 Gbps on the 6 GHz band (using 320 MHz channel width), 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz, making it perfectly suited for high-bandwidth applications and dense client deployments supporting 300+ simultaneous users.
Overview
| Specification | Details |
|---|---|
| Dimensions | Ø200 x 46 mm (Ø8.1 x 1.8″) |
| WiFi Standard | WiFi 7 (802.11be) |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Pro Mount Included) |
| Power Method | PoE+ |
Performance
| Specification | Details |
|---|---|
| MIMO (6 GHz) | 2×2 (DL/UL MU-MIMO) |
| MIMO (5 GHz) | 2×2 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 2×2 (DL/UL MU-MIMO) |
| Max. Data Rate (6 GHz) | 5.8 Gbps (BW320) |
| Max. Data Rate (5 GHz) | 4.3 Gbps (BW240) |
| Max. Data Rate (2.4 GHz) | 688 Mbps (BW40) |
| Antenna Gain (6 GHz) | 5.8 dBi |
| Antenna Gain (5 GHz) | 6 dBi |
| Antenna Gain (2.4 GHz) | 4 dBi |
| Max. TX Power (6 GHz) | 23 dBm |
| Max. TX Power (5 GHz) | 26 dBm |
| Max. TX Power (2.4 GHz) | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps 802.11n: 6.5 Mbps to 300 Mbps |
Features
| Feature | Supported |
|---|---|
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | ✓ |
| Custom Branding Landing Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
Hardware
| Specification | Details |
|---|---|
| Max. Power Consumption | 21W |
| Supported Voltage Range | 44—57V DC |

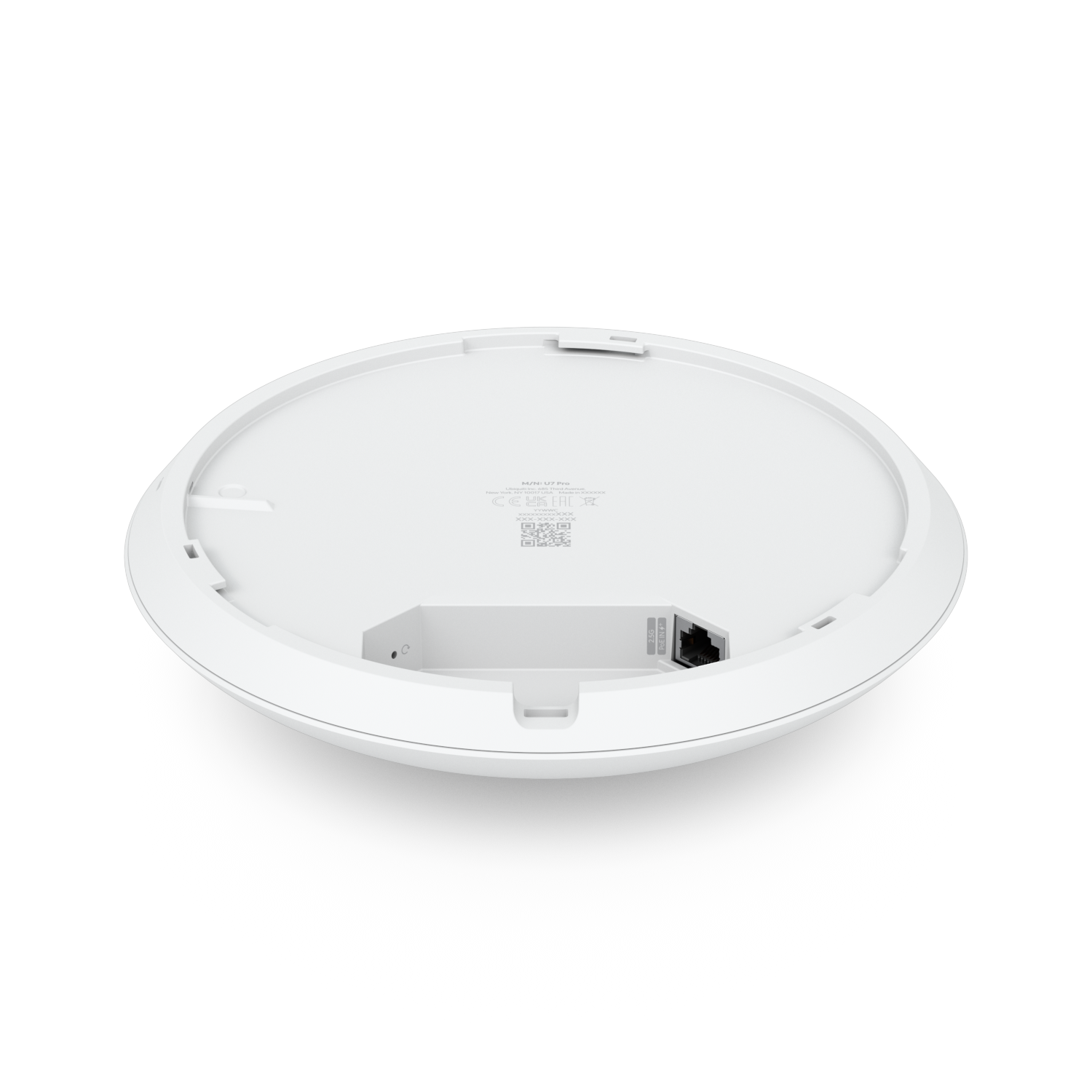

| Networking Interface | (1) 1/2.5 GbE RJ45 Port |
| Weight | 680 g (1.5 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, Metal |
| Mount Material | Stainless steel (SUS304), Galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | US/CA: 2.4 GHz: 2400-2472 MHz; 5 GHz: 5150-5250, 5250-5350, 5470-5725, 5725-5850 MHz; 6 GHz: 5925-7125 MHz Worldwide: 2.4 GHz: 2400-2483.5 MHz; 5 GHz: 5150-5725 MHz; 6 GHz: 5925-7125 MHz |
| Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Operating Humidity | 5 to 95% non-condensing |
Software
| Specification | Details |
|---|---|
| Application Requirements | UniFi Network Version 8.0.28 and later |
