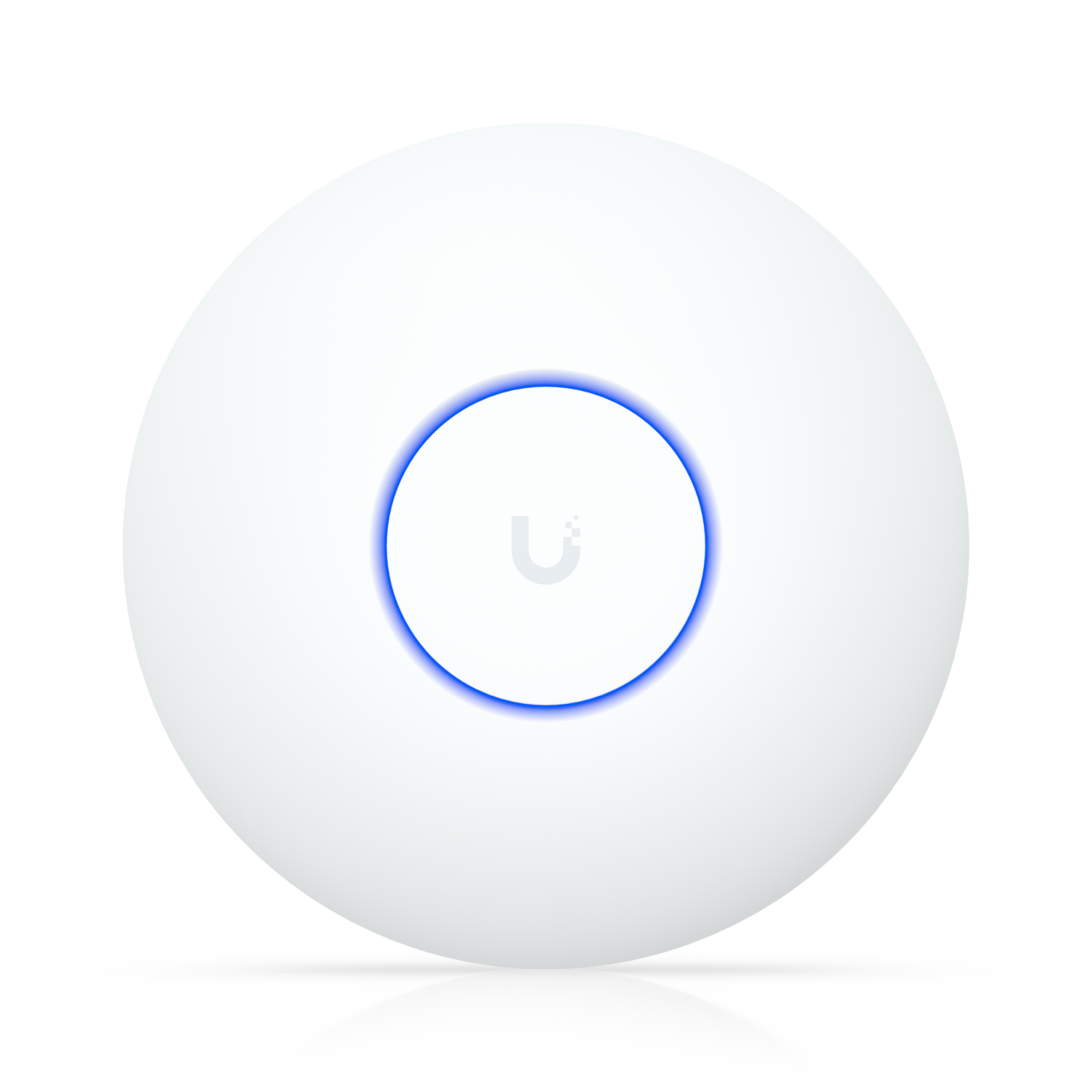

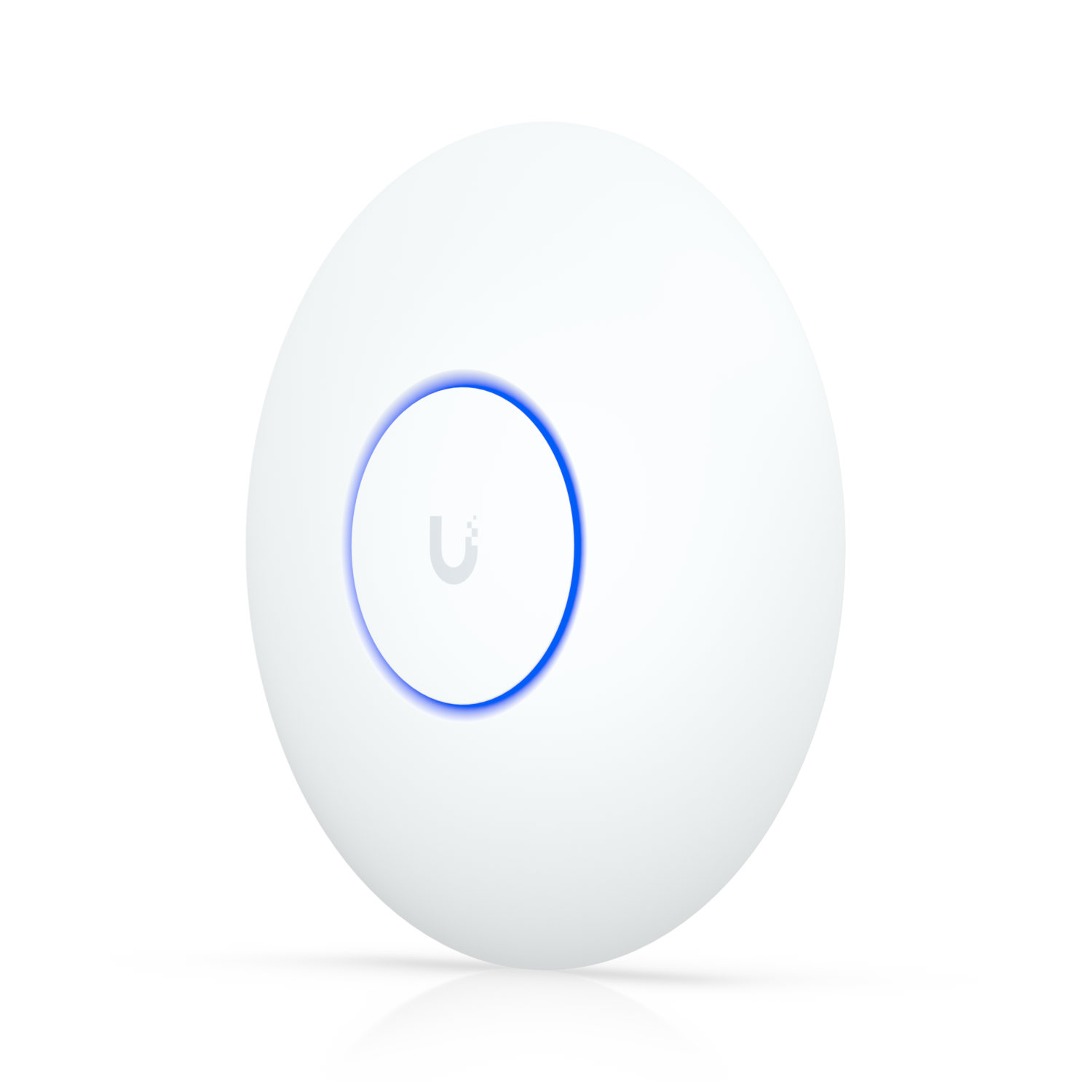

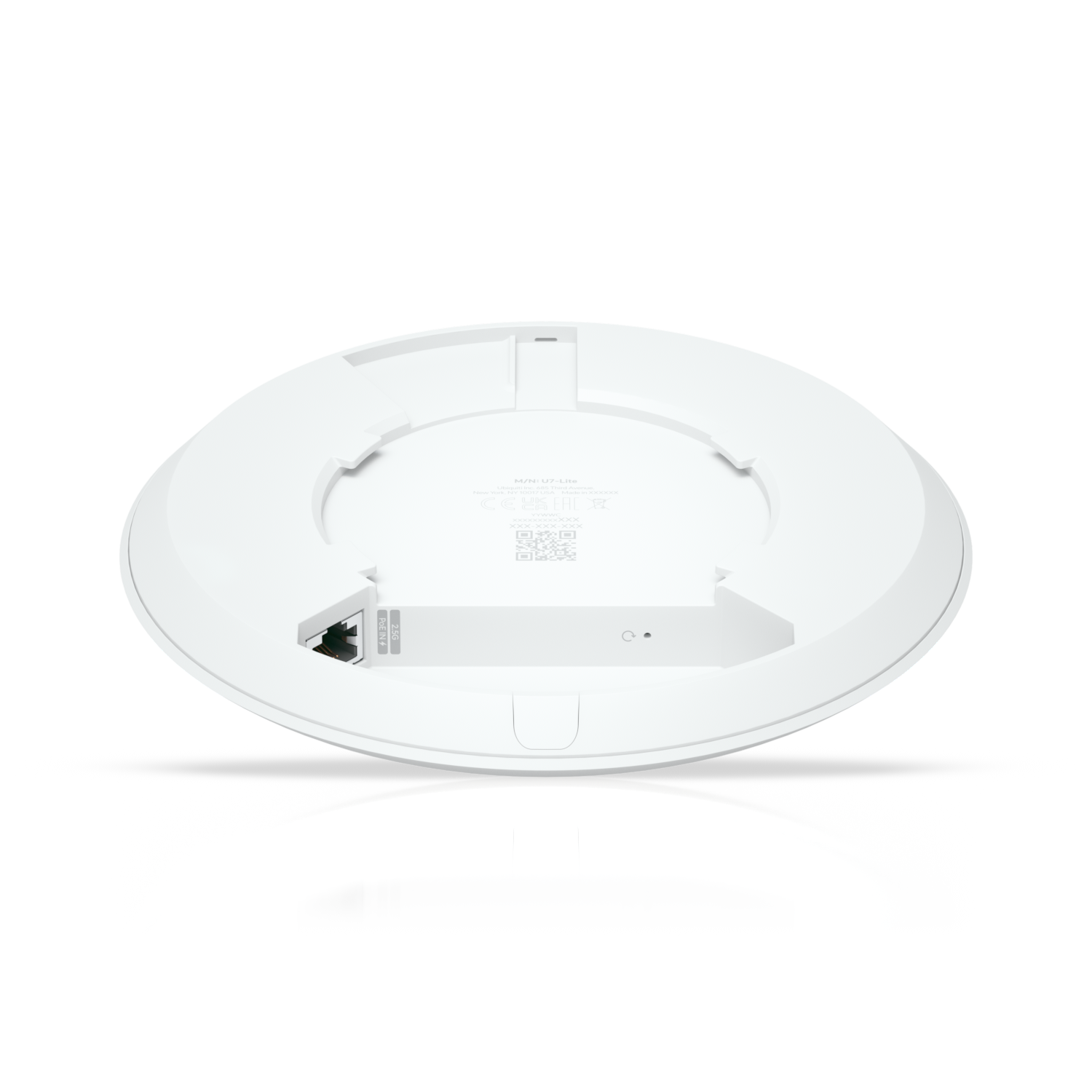

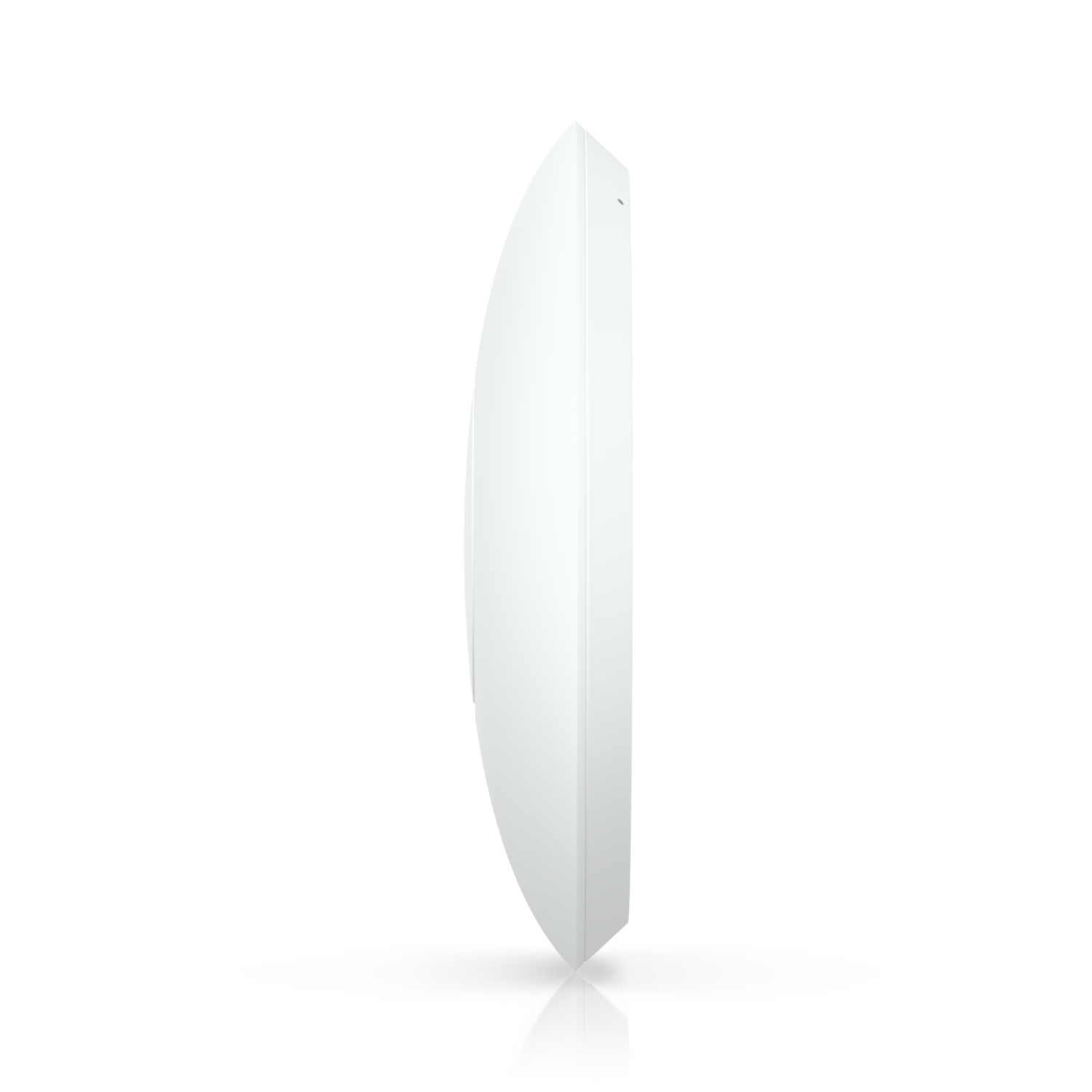

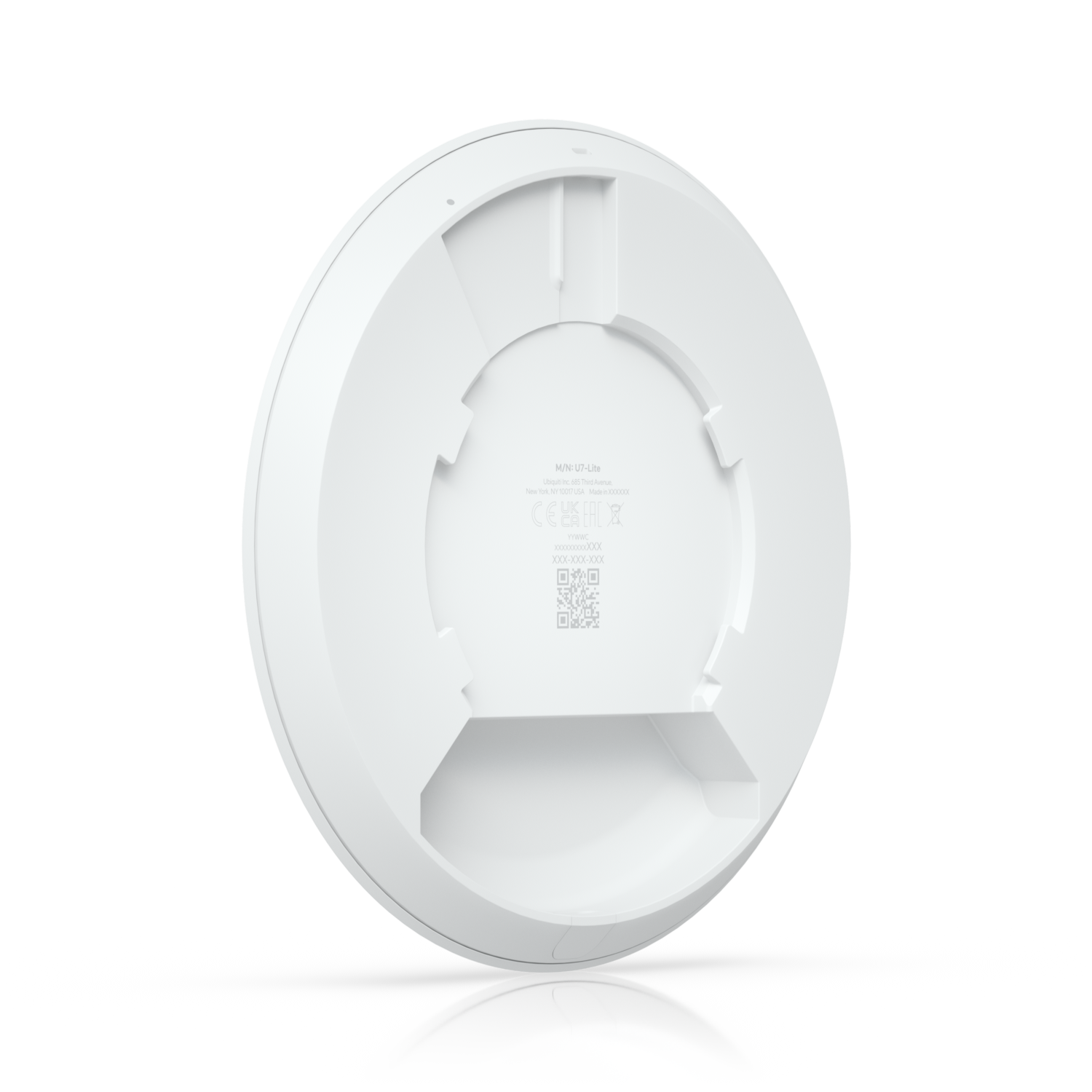

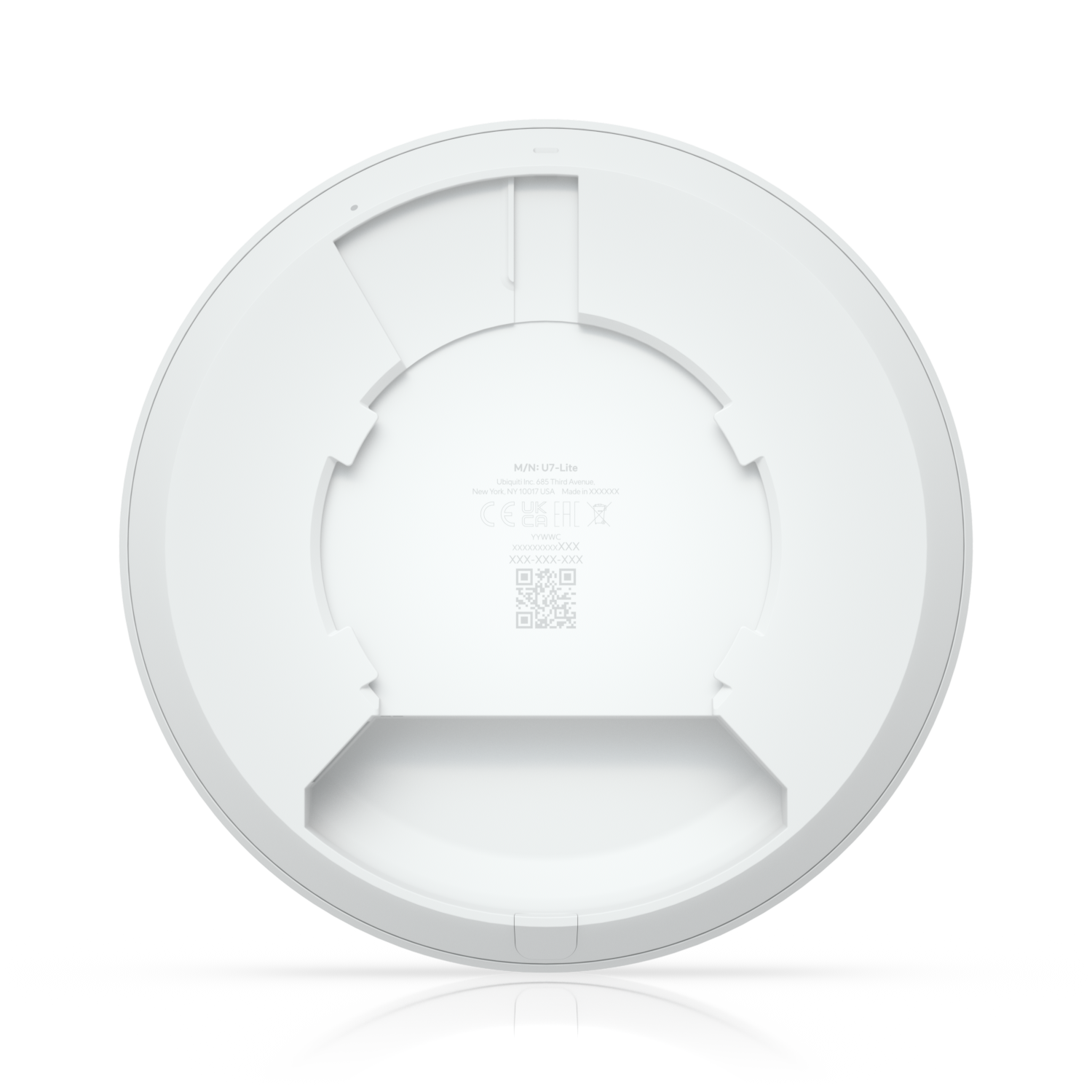

Ubiquiti U7 Lite Dual Band Wi-Fi 7 IEEE 802.11, 4.30 Gbit/s Wireless Access Point ( U7-Lite )

SKU: U7-Lite Brand:

The Ubiquiti UniFi U7 Lite is an entry-level WiFi 7 access point that brings next-generation wireless technology to budget-conscious deployments. With a compact design, 2.5 GbE uplink, and support for 200+ clients, it delivers impressive speeds up to 4.3 Gbps while maintaining low power consumption. Ideal for small to medium-sized indoor spaces, it offers enterprise features in an affordable, easy-to-deploy package.

$149.00

15 People watching this product now!

Payment Methods:

Description

The Ubiquiti UniFi U7 Lite is an accessible entry point into the WiFi 7 ecosystem, designed to provide next-generation wireless performance for cost-sensitive deployments without compromising on essential enterprise features. This compact access point leverages the 802.11be standard with 4 spatial streams and 2×2 DL/UL MU-MIMO technology across both 2.4 GHz and 5 GHz bands to deliver impressive wireless speeds up to 4.3 Gbps on the 5 GHz band using 240 MHz channel width.

Despite its budget-friendly positioning, the U7 Lite includes a 2.5 GbE uplink port to ensure no network bottleneck and is powered via standard PoE for easy installation. With a coverage area of 115 m² and support for 200+ concurrent clients, it’s perfectly suited for small to medium-sized offices, classrooms, retail spaces, and residential applications. The device features UV-stabilized polycarbonate construction and operates reliably in temperatures from -30° to 40° C.

As part of the UniFi ecosystem, the U7 Lite offers the same comprehensive feature set as its higher-end counterparts, including wireless meshing, band steering, fast roaming (802.11k/v/r), and advanced guest management with customizable captive portal options. Managed through UniFi Network version 9.0.114 or later, it provides network administrators with enterprise-grade control over radio resources, client policies, and security settings. The U7 Lite represents an exceptional value proposition for organizations seeking to future-proof their wireless infrastructure with WiFi 7 technology while maintaining a conservative budget.

Overview

Specification Details
Dimensions Ø171.5 x 33 mm (Ø6.8 x 1.3″)
WiFi Standard WiFi 7 (802.11be)
Spatial Streams 4
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 200+
Uplink 2.5 GbE
Mounting Ceiling, Wall (Lite Mount Included)
Power Method PoE

Performance

Specification Details
MIMO (5 GHz) 2×2 (DL/UL MU-MIMO)
MIMO (2.4 GHz) 2×2 (DL/UL MU-MIMO)
Max. Data Rate (5 GHz) 4.3 Gbps (BW240)
Max. Data Rate (2.4 GHz) 688 Mbps (BW40)
Antenna Gain (5 GHz) 5 dBi
Antenna Gain (2.4 GHz) 4 dBi
Max. TX Power (5 GHz) 24 dBm
Max. TX Power (2.4 GHz) 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
802.11n: 6.5 Mbps to 300 Mbps

Features

Feature Supported
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Captive Hotspot Portal ✓
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓

Hardware

Specification Details
Max. Power Consumption 13W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 2.5 GbE RJ45 Port
Weight 313 g (11 oz)
Management Ethernet
Enclosure Material UV-stabilized polycarbonate
Mount Material UV-stabilized polycarbonate, Galvanized steel (SGCC)
LEDs System: White/Blue
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel, SRRC
Operating Temperature -30 to 40° C (-22 to 104° F)
Operating Humidity 5 to 95% non-condensing

Software

Specification Details
Application Requirements UniFi Network Version 9.0.114 and later
Mobile App (iOS) Version 10.20.2 and later
Mobile App (Android) Version 10.21.7 and later
