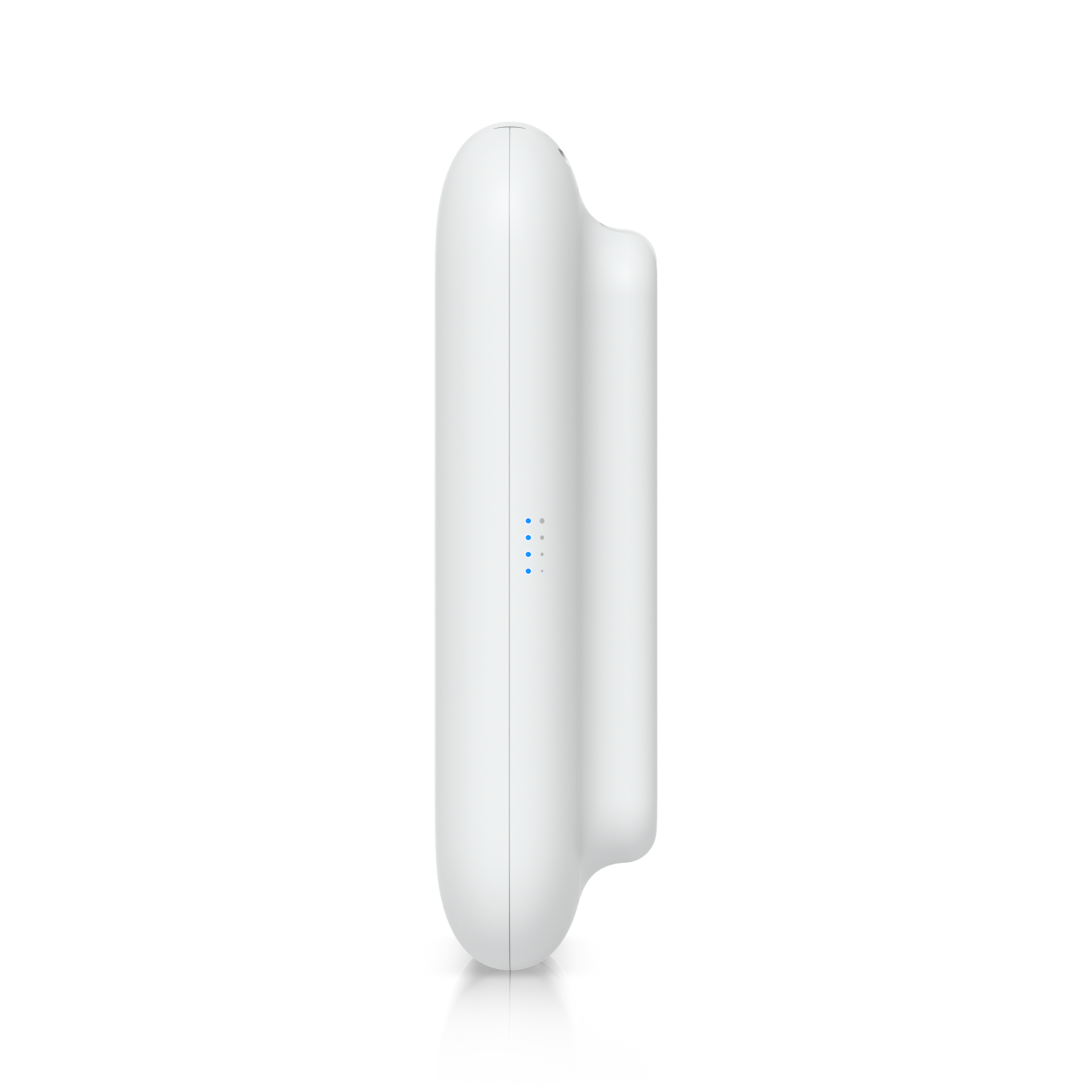

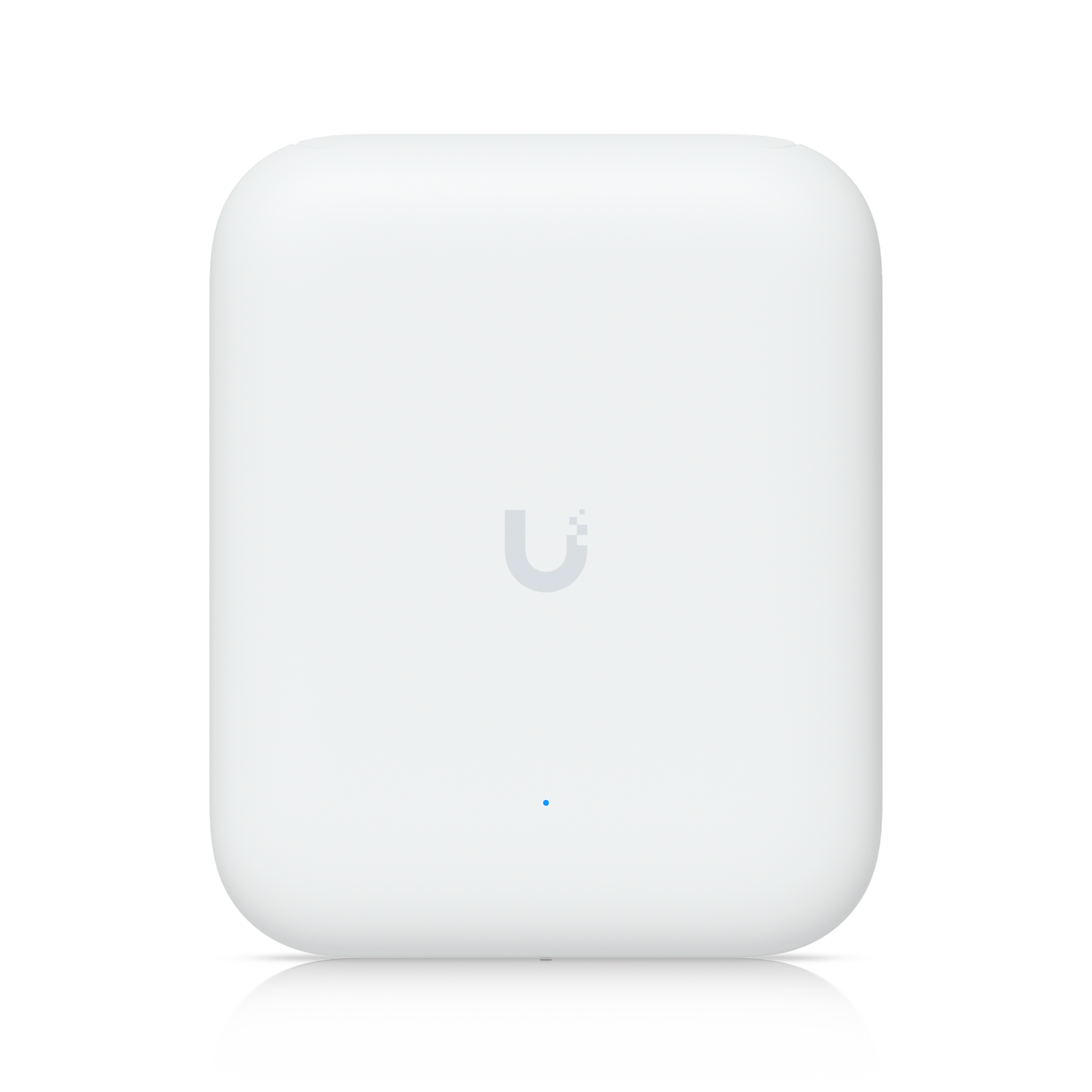

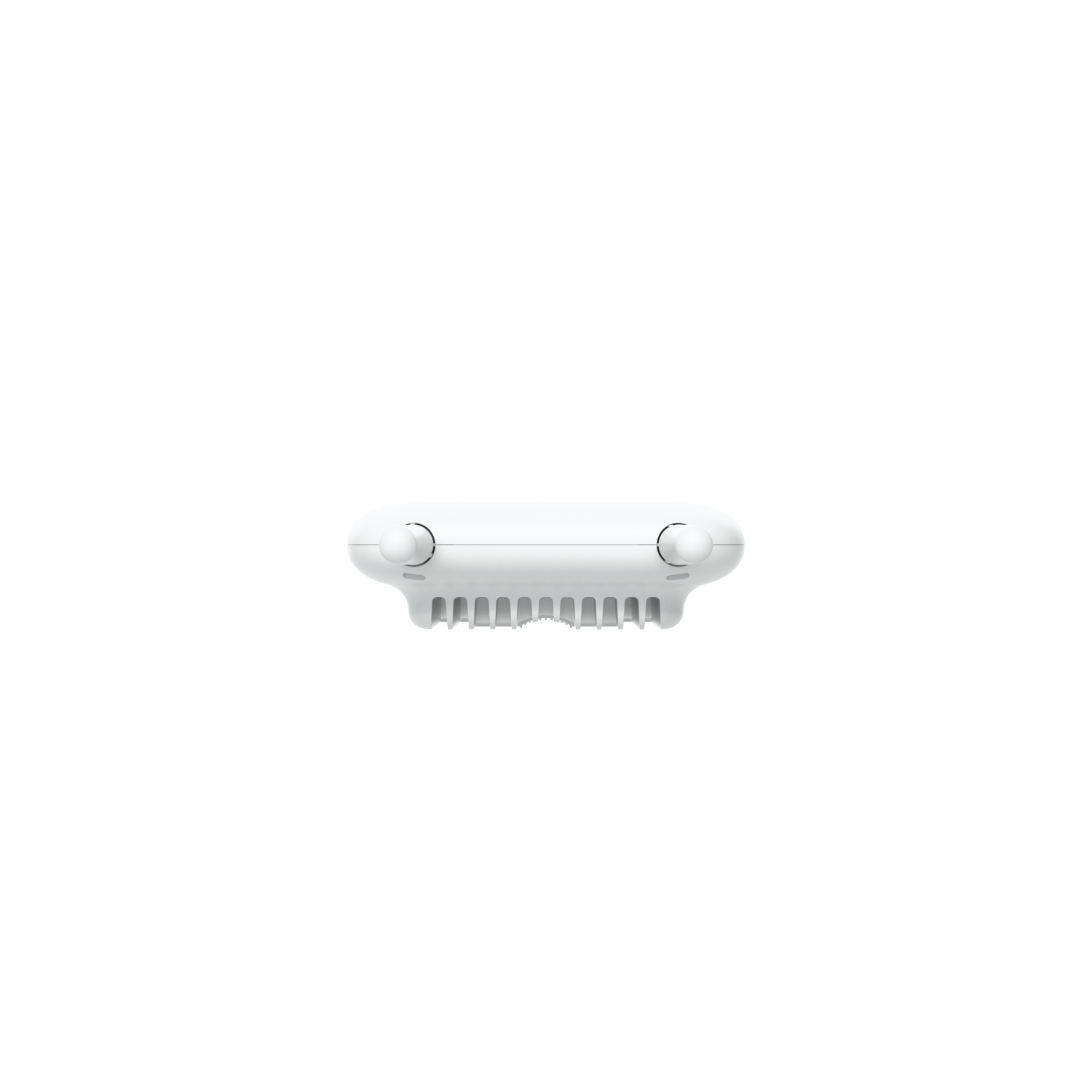

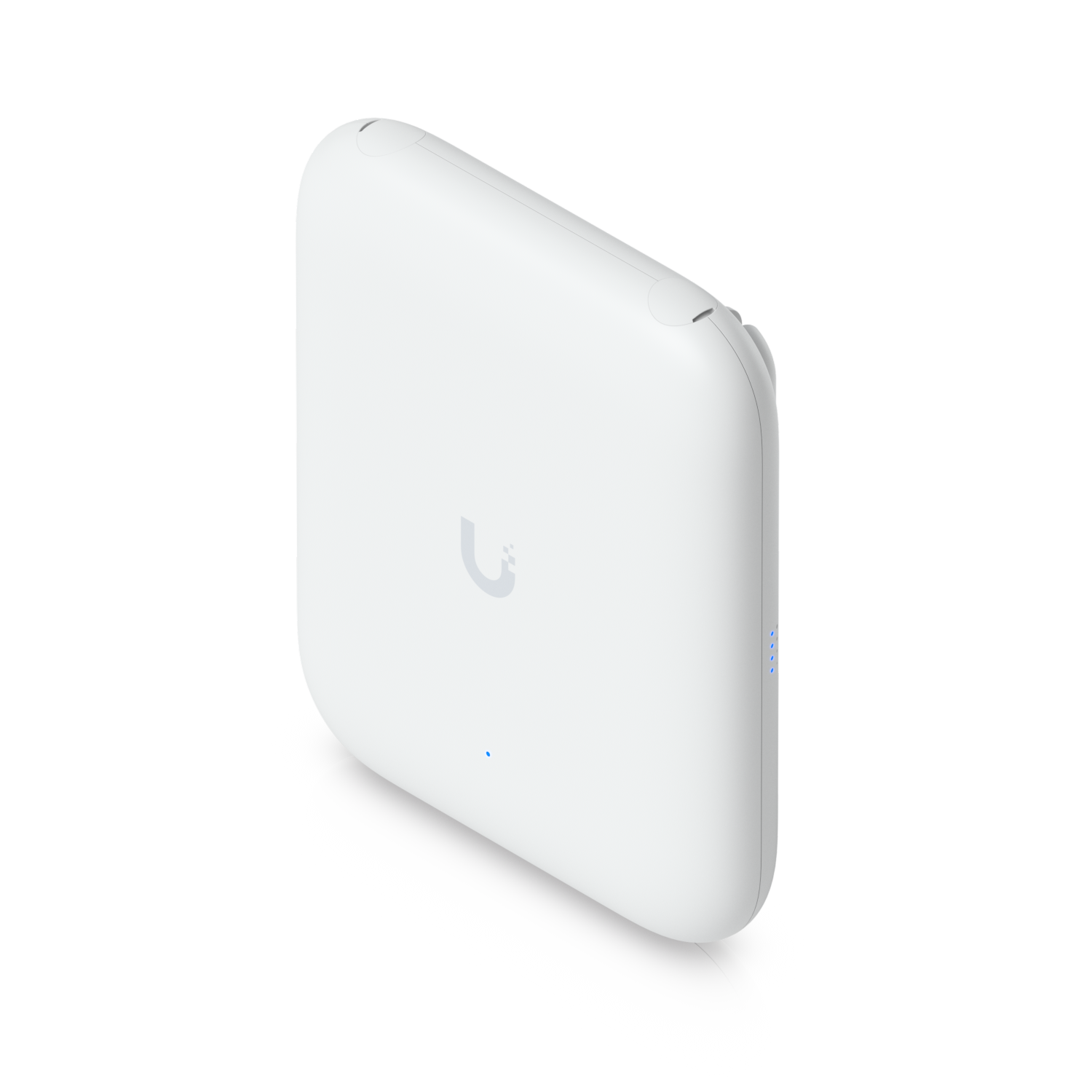

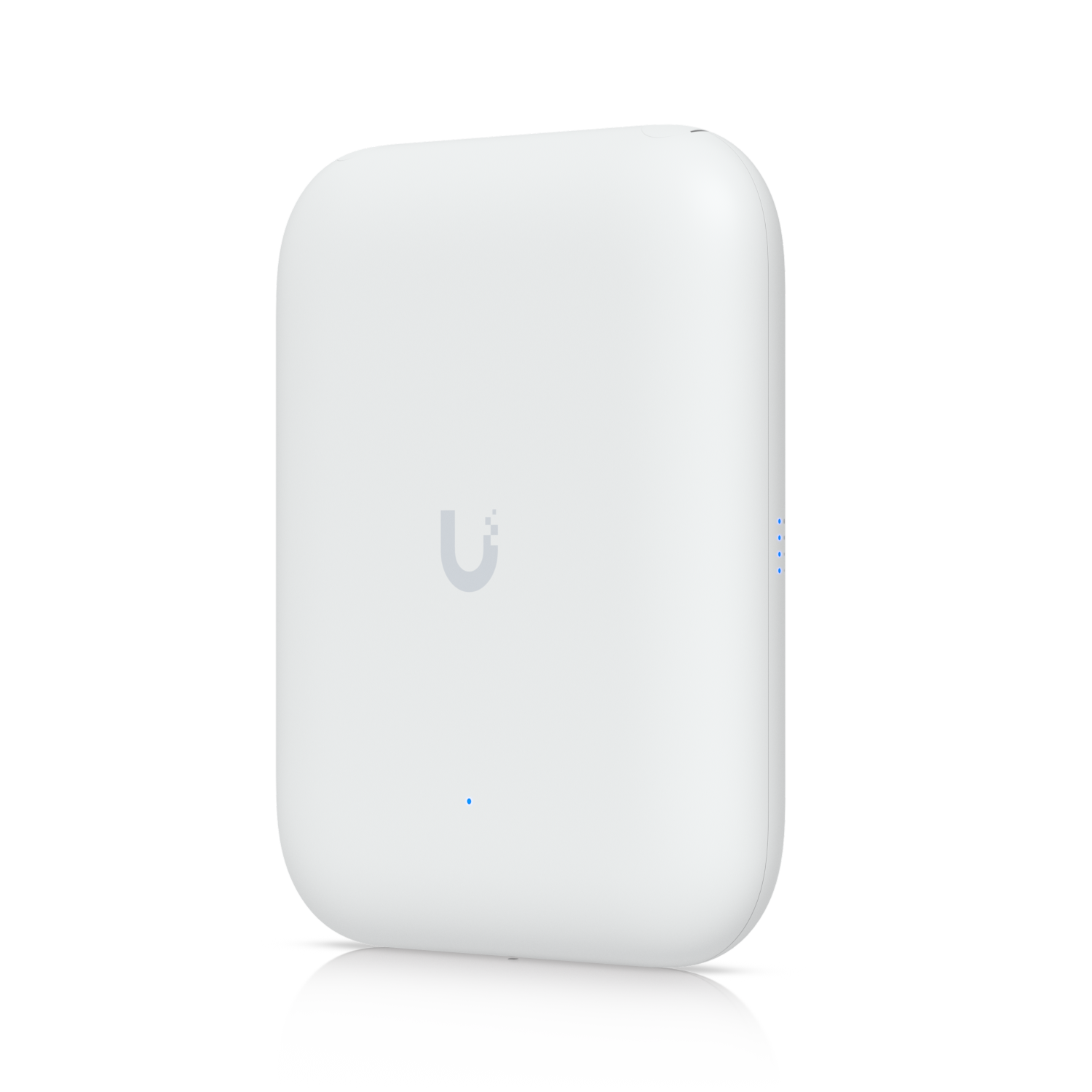

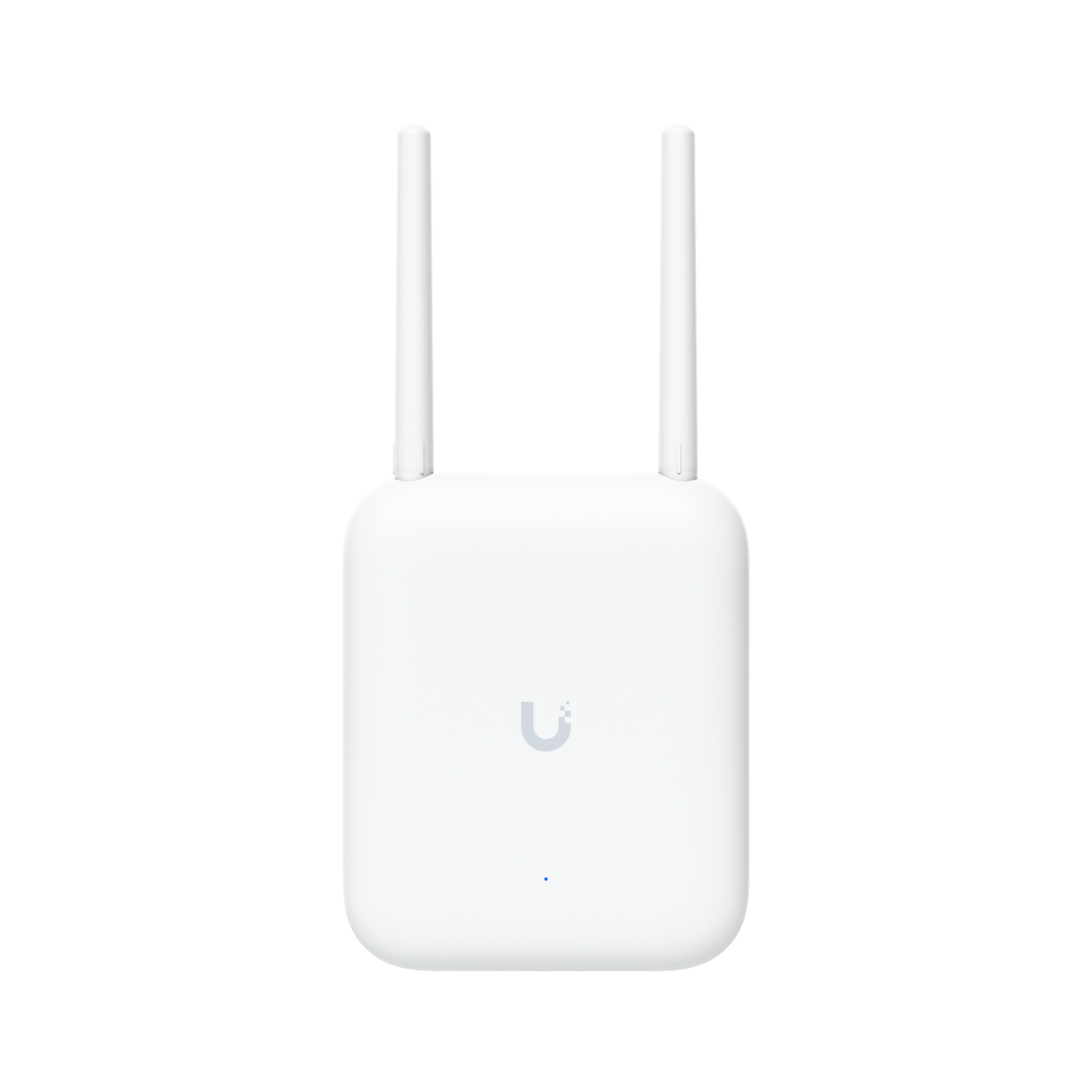

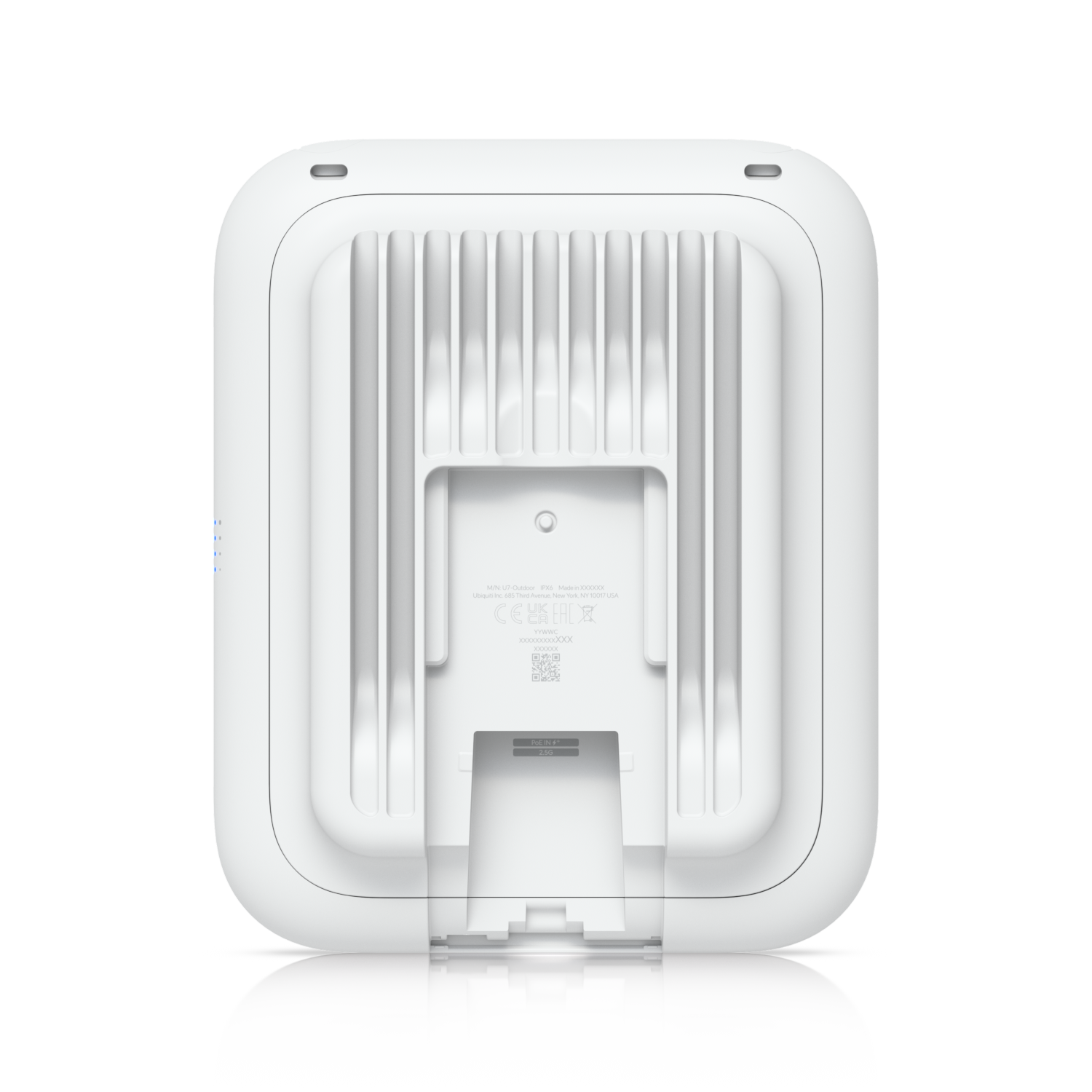

Ubiquiti U7-Outdoor UniFi Dual-Band Weatherproof Wi-Fi 7 AP

SKU: U7-Outdoor Brand:

The Ubiquiti UniFi U7 Outdoor is a robust, high-performance WiFi 7 access point designed for outdoor deployment. Featuring a compact, IPX6-rated enclosure and versatile mounting options, it delivers extensive coverage up to 5,000 ft² for 250+ clients. With a 2.5 GbE uplink, advanced dual-band performance reaching 4.3 Gbps, and flexible internal/external antennas, it’s ideal for creating high-speed, reliable outdoor wireless networks with comprehensive UniFi management capabilities.

$299.00

Compare
Add to wishlist
16 People watching this product now!

Payment Methods:

Description

The Ubiquiti UniFi U7 Outdoor (U7-Outdoor) is a next-generation outdoor access point that brings the power of WiFi 7 to challenging external environments. Engineered with a durable, IPX6-rated enclosure made from UV-stabilized polycarbonate and aluminum alloy, this AP is built to withstand harsh weather conditions while operating reliably in temperatures from -30° to 60° C.

Its sophisticated antenna system combines a high-gain directional internal antenna (12.5 dBi on 5 GHz) with two external omnidirectional antennas, providing flexible coverage patterns optimized for both focused and broad area coverage. This setup delivers impressive wireless performance, achieving data rates up to 4.3 Gbps on the 5 GHz band and 688 Mbps on 2.4 GHz through 2×2 DL/UL MU-MIMO technology across both bands.

The U7 Outdoor includes comprehensive enterprise features including wireless meshing, band steering, fast roaming (802.11k/v/r), and advanced guest management tools with customizable captive portal options. Powered via PoE+ and featuring a 2.5 GbE uplink port, it ensures sufficient bandwidth for high-density deployments. As part of the UniFi ecosystem, it requires UniFi Network version 8.2.93 or later for seamless integration and management, making it an ideal solution for campuses, hospitality venues, and metropolitan Wi-Fi deployments requiring robust outdoor coverage with future-proof WiFi 7 performance.

Overview

Specification Details
Dimensions 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1″)
WiFi Standard WiFi 7 (802.11be)
Spatial Streams 4
Coverage Area 465 m² (5,000 ft²)
Max. Client Count 250+
Uplink 2.5 GbE

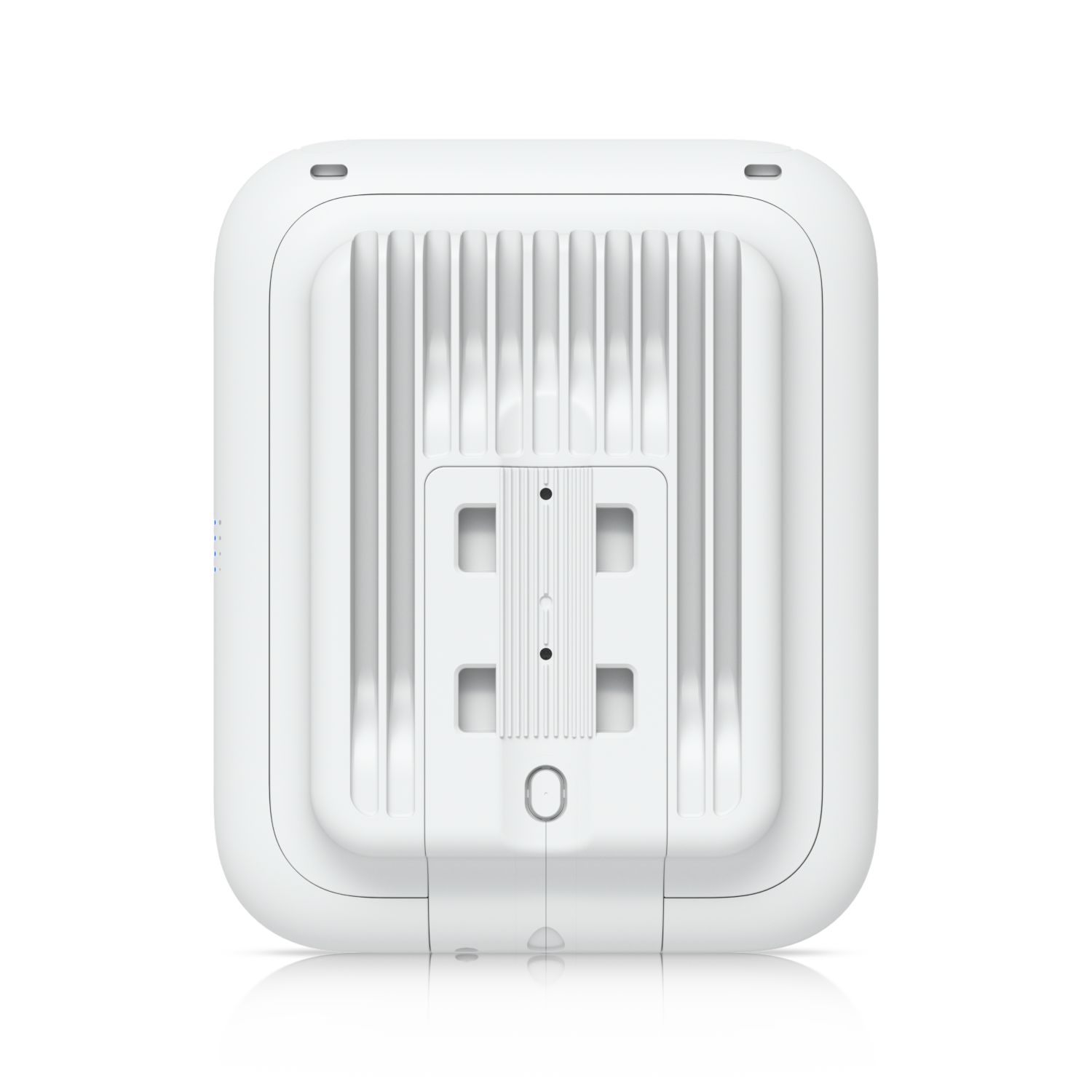

Mounting Wall, Pole (Mounts Included)
Weatherproofing IPX6
Power Method PoE+

Performance

Specification Details
MIMO (5 GHz) 2×2 (DL/UL MU-MIMO)
MIMO (2.4 GHz) 2×2 (DL/UL MU-MIMO)
Max. Data Rate (5 GHz) 4.3 Gbps (BW240)
Max. Data Rate (2.4 GHz) 688 Mbps (BW40)
Antenna Gain (5 GHz) Directional internal: 12.5 dBi, 45° x 45°
External omni: 4 dBi, 360° x 30°
Antenna Gain (2.4 GHz) Directional internal: 8 dBi, 90° x 90°
External omni: 3 dBi, 360° x 30°
Max. TX Power (5 GHz) 26 dBm
Max. TX Power (2.4 GHz) 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
802.11n: 6.5 Mbps to 300 Mbps

Features

Feature Supported
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓
Captive Hotspot Portal ✓
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓

Hardware

Specification Details
Max. Power Consumption 19W
Supported Voltage Range 42.5—57V DC

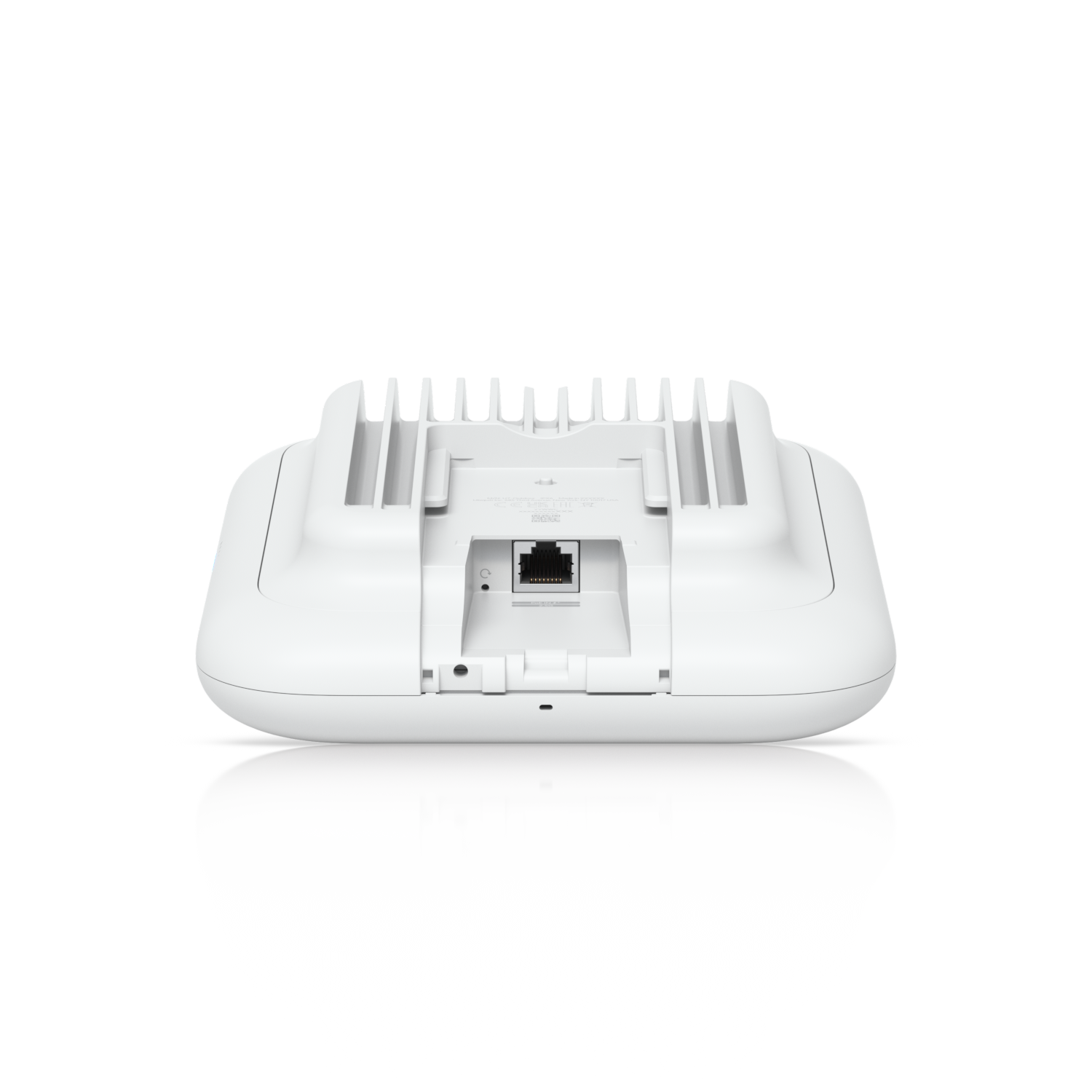

Networking Interface (1) 1/2.5 GbE RJ45 Port
Weight 1.2 kg (2.6 lb)
Wind Loading 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter 1-2.36″ (25-60 mm)
Antennas (1) Directional internal antenna

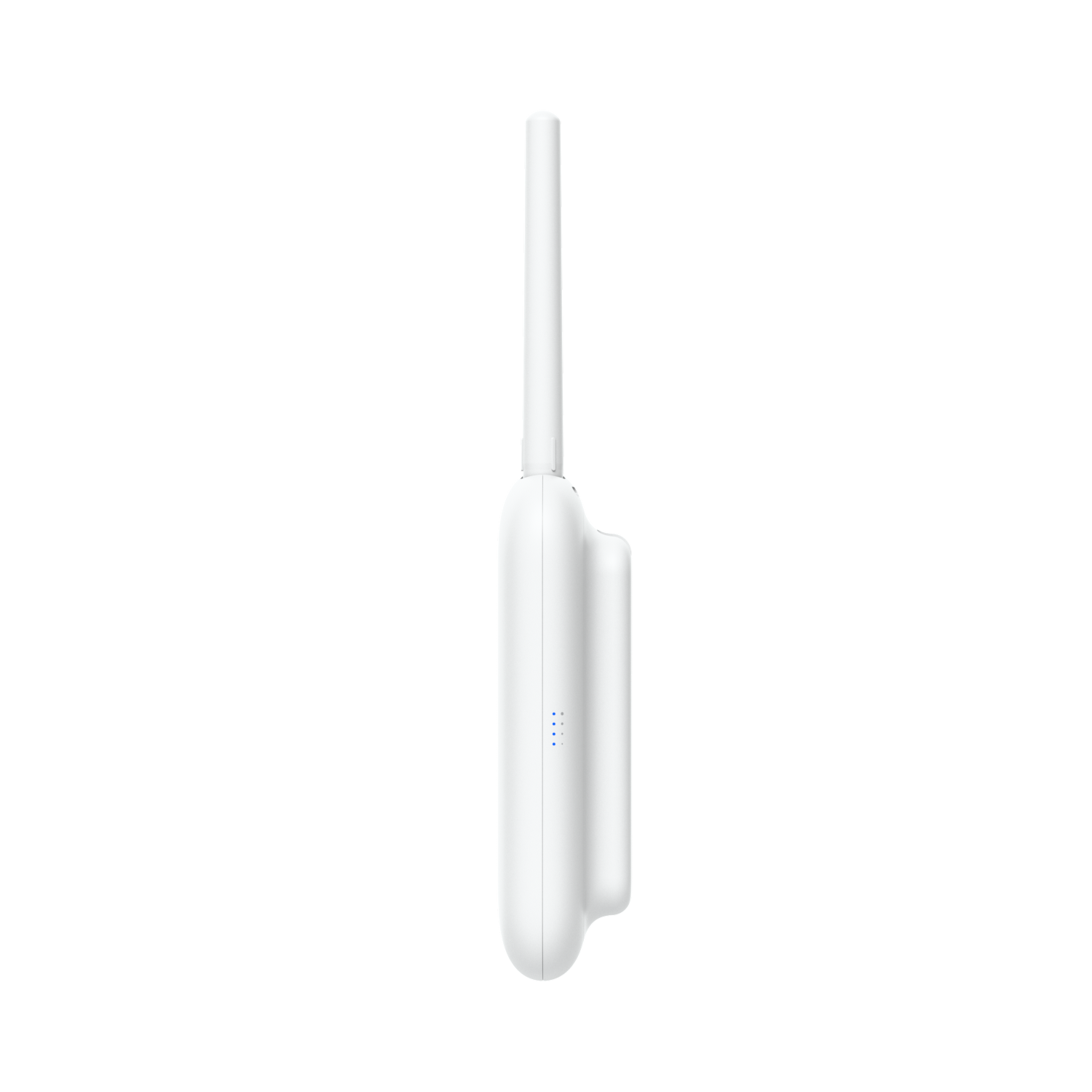

(2) External omni antennas

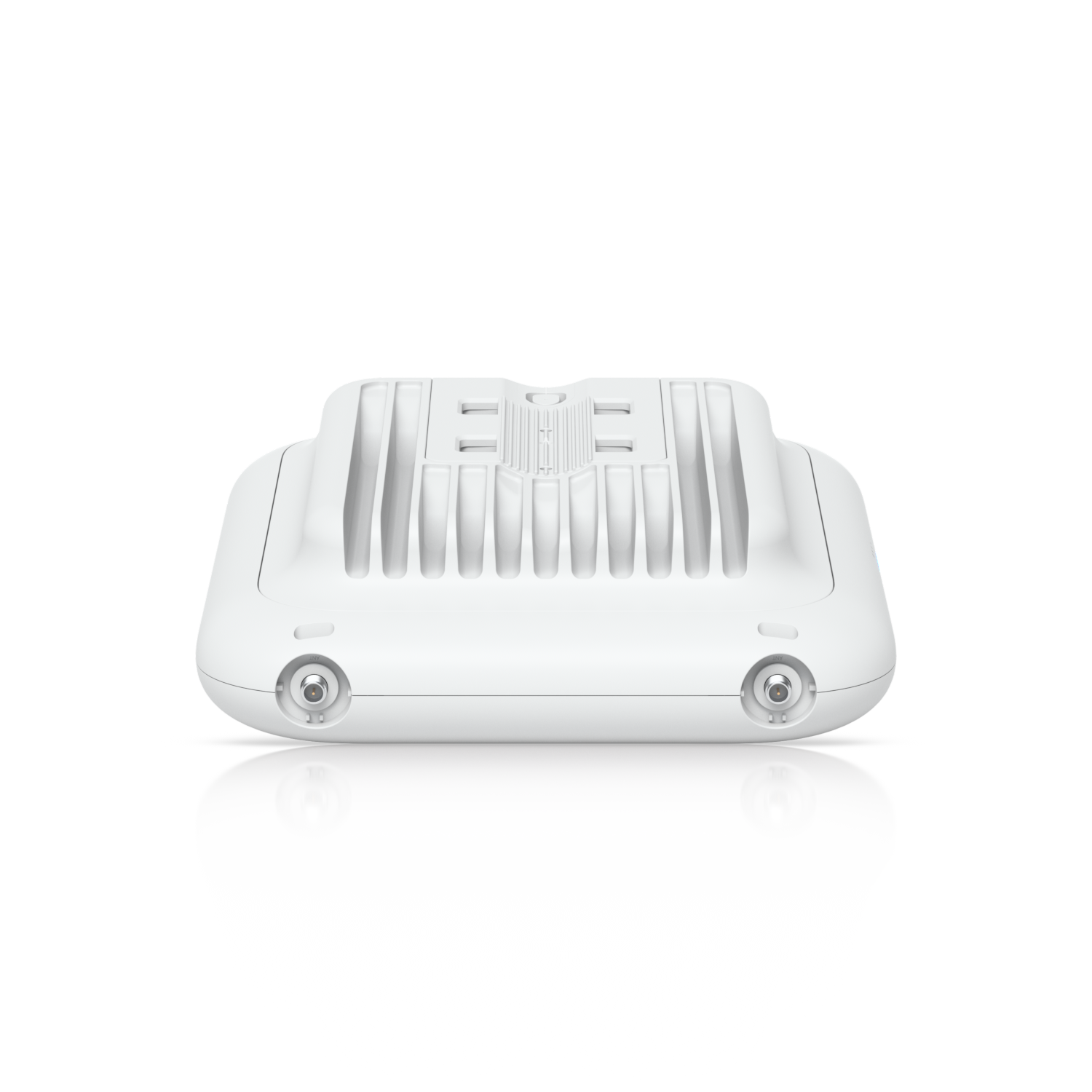

(2) RP-SMA connectors for external antenna
Antenna Beamwidth 5 GHz: 45°
2.4 GHz: 90°
Management Ethernet
Enclosure Material UV-stabilized polycarbonate, aluminum alloy
Mount Material Polycarbonate, SGCC steel
LEDs (1) Power: White/Blue; (1) System: White/Blue; (4) Mesh Signal: Blue
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel
Operating Frequency US/CA: 2.4 GHz: 2400-2472 MHz; 5 GHz: 5150-5250, 5250-5350, 5470-5725, 5725-5850 MHz
Worldwide: 2.4 GHz: 2400-2483.5 MHz; 5 GHz: 5150-5725 MHz
Operating Temperature -30 to 60° C (-22 to 140° F)
Operating Humidity 5 to 95% non-condensing

Software

Specification Details
Application Requirements UniFi Network Version 8.2.93 and later
