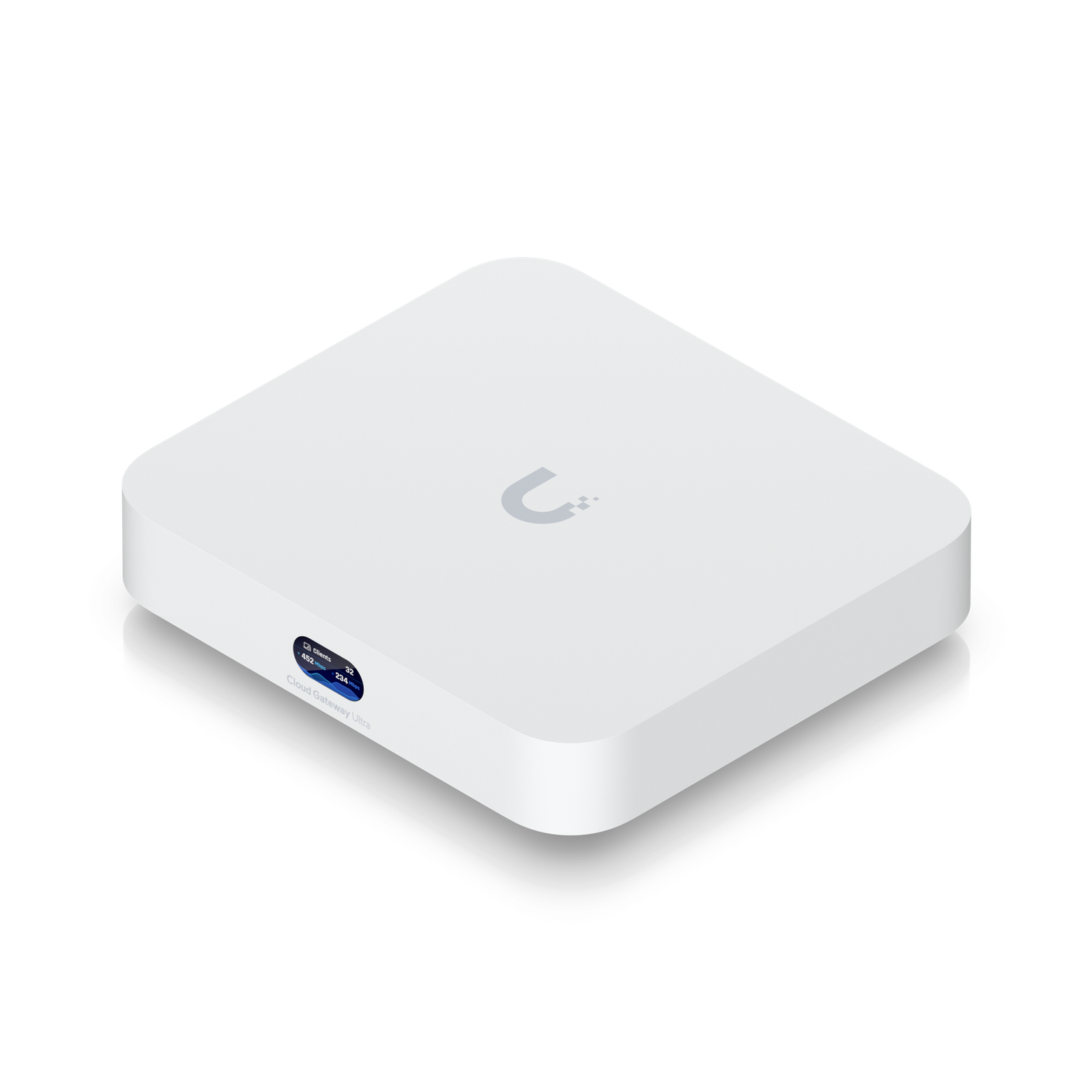

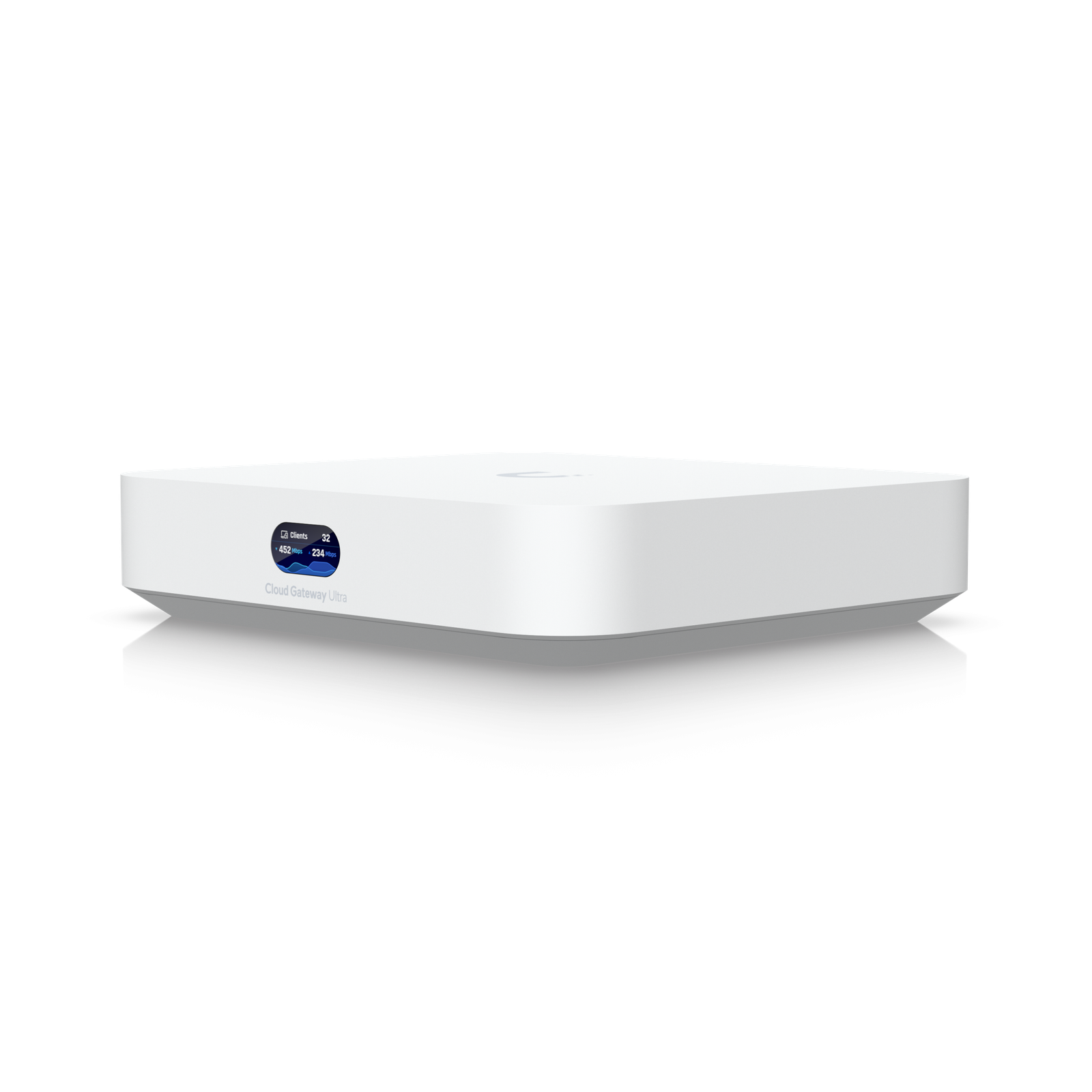

Ubiquiti UniFi Cloud Gateway Ultra ( UCG-Ultra )

SKU: UCG-Ultra Brand:

The UniFi Cloud Gateway Ultra is a compact and efficient network controller and security gateway designed for small to medium networks. Featuring a 2.5 GbE WAN port, advanced threat protection with 55,000+ signatures, and support for 30+ UniFi devices, it provides enterprise-grade networking capabilities in a low-power, desktop form factor.

$199.00

10 People watching this product now!

Payment Methods:

Description

The Ubiquiti UniFi Cloud Gateway Ultra is a sophisticated yet compact networking appliance that serves as both a cloud controller and security gateway for small to medium-sized networks. This device provides centralized management for up to 30+ UniFi devices while supporting 300+ simultaneous users, making it ideal for small businesses, remote offices, and advanced home networks seeking enterprise-level control without complex infrastructure.

The gateway features versatile connectivity with one 2.5 GbE WAN port for high-speed internet connections and four 1 GbE LAN ports for connecting wired devices. Its standout feature is advanced security protection, including a comprehensive intrusion prevention system (IPS) with 1 Gbps throughput and an extensive database of 55,000+ threat signatures powered by CyberSecure technology. The device also includes full firewall capabilities with application-aware filtering, content filtering, and ad blocking.

Powered by a quad-core ARM processor with 3GB of memory and 16GB of onboard storage, the Cloud Gateway Ultra delivers robust performance for networking operations including license-free SD-WAN, multiple VPN protocols (IPsec, OpenVPN, WireGuard), dynamic routing with OSPF, and an integrated RADIUS server. With its low 6.2W power consumption via USB-C power and compact desktop design featuring a 0.96″ status display, it offers an efficient and manageable solution for organizations requiring advanced networking features in a space-efficient package.

Overview

Specification Details
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″)
Form Factor Compact Desktop
Managed UniFi Devices 30+
Simultaneous Users 300+
WAN Ports (1) 2.5 GbE RJ45
LAN Ports (4) 1 GbE RJ45
Application Suite Network

Performance & Security

Category Specification
IDS/IPS Throughput 1 Gbps
Security Features Stateful Firewall, Layer 7 Firewall, DPI, Content Filtering, IPS/IDS, Ad Blocking
IDS/IPS Signatures 55,000+ with CyberSecure
VPN Types Site-to-Site, IPsec, OpenVPN, WireGuard, L2TP
SD-WAN License-Free
Networking Features Multi-WAN, OSPF, Advanced QoS, mDNS, Advanced NAT, Integrated RADIUS
MAC Address Table 2,000

Hardware

Specification Details
Max. Power Consumption 6.2W
Power Method USB Type-C (5V DC/3A)
Processor Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory 3 GB
On-board Storage 16 GB
Weight 520 g (1.1 lb)
Enclosure Material Polycarbonate

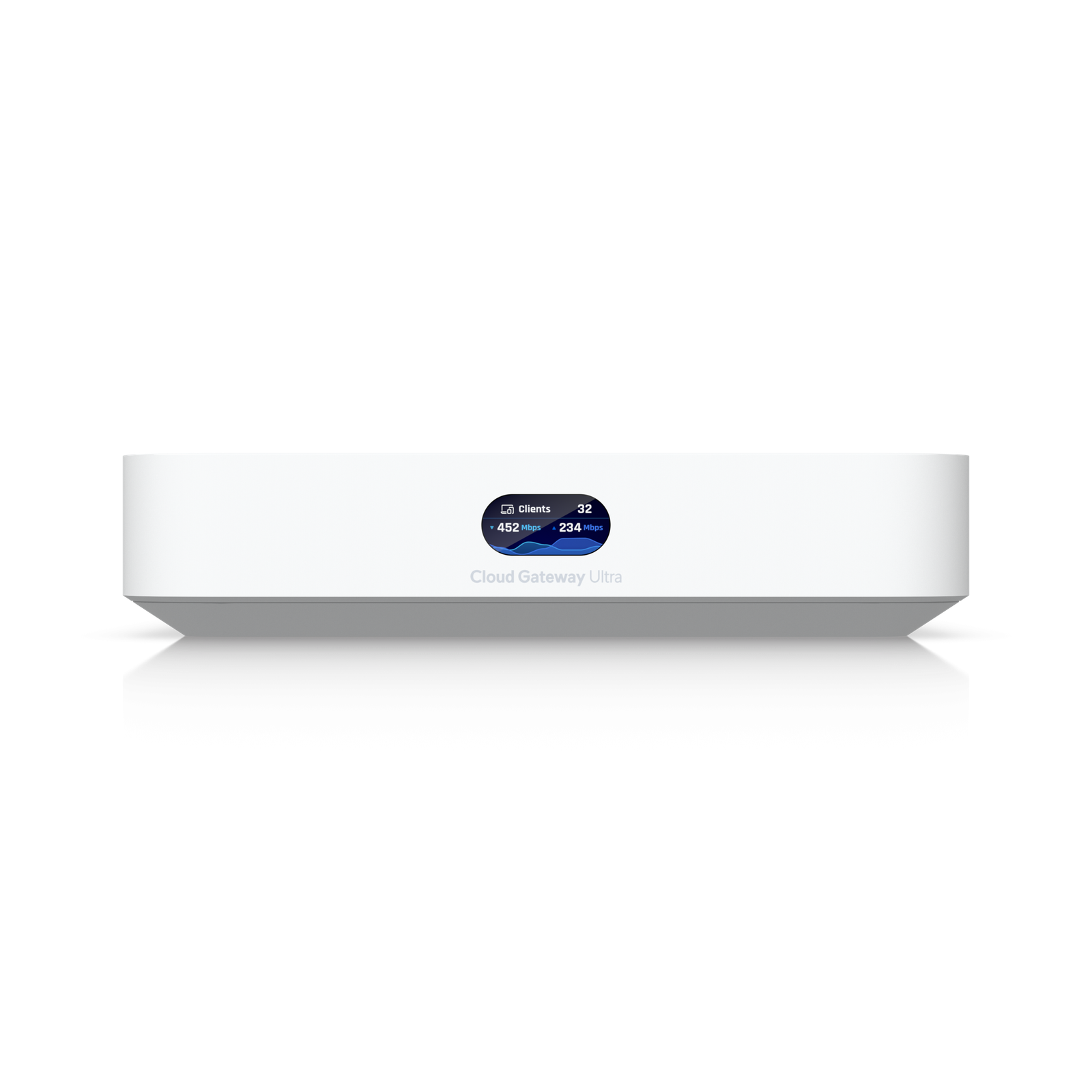

Display 0.96″ status display
Management Ethernet, Bluetooth
Operating Temperature -10 to 40° C (14 to 104° F)
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel, SRRC

Software

Specification Details
Mobile App (iOS) Version 10.12.0 and later
Mobile App (Android) Version 10.11.2 and later
